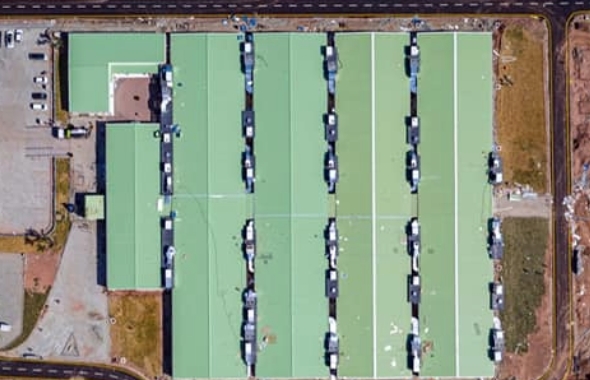

PROPÓSITO Back Up Power Plant for Isolation Hospital and Infectious Treatment Centre 客户 VISA SpA 地点 Islamabad, Pakistan 功率 500 kVA 和 250 kVA With extra hospitals being built globally to help combat treatment of Coronavirus (COVID-19) patients, global genset manufacturer VISA SpA established in the 1960’s and operating in almost 100 countries worldwide turned to STAMFORD to fulfill customer requirements. 项目范围 该项目旨在为安装在1.25 MVA备用发电厂的发电机组提供交流发电机,该备用发电厂位于P.R.P.,由2台500 kVA设备和1台250 kVA设备组成,这些设备将用于巴基斯坦的隔离医院和传染病治疗中心,该中心最初是为了抗击新冠病毒(COVID-19)的影响而建造的,后来又成为了一家综合的传染病治疗医院。 技术规格 The 3 genset units fitted with 2 x STAMFORD HC5 alternators and 1 x STAMFORD UC27 alternator had a fundamental role in providing uninterrupted power supply to the hospital, ensuring backup power in-case of Mains Failure. Due to the non-availability of Mains Source (i.e. WAPDA in Pakistan) at site, initially the gensets were tasked to run 24/7, supplying load to the hospital until the availability of the Main Source was completed. The customer required highly reliable technological machines that constantly supported the exceptional protocols in place to ensure coverage of all the increased requirements being asked of the power supply and chose STAMFORD products. The fast pace of the pandemic, plus VISA’s close working relationship with STAMFORD combined with VISA’s global presence, allowed delivery of the units on the project site within 10 days. Quick delivery, however, did not compromise product performance, efficiency and reliability, with the units chosen still being the ideal solution for this high level application. 客户满意度 Technical support, together with an extensive global parts services network were also a factor that attracted VISA to work with STAMFORD I AvK for this project. All the diesel generating sets were delivered and installed according to their customers' strict schedule, demonstrating the company's ability to work to stipulated project deadlines, also under the most challenging conditions. Close working relationship with STAMFORD I AvK allows VISA to ensure swift delivery of Gensets, without compromising on reliability and performance 产品数据表 更多产品信息 这显示了产品页面上的特色标准型号。实际的客户解决方案可能会有所不同。 斯坦福 HC5 50Hz连续 (kVA) 675.00 60Hz连续 (kVA) 843.00 电压范围 380-690 额定电压 低 极数 4 防护等级 IP23 材料绝缘等级 H 励磁系统 自励 绕组节距 2/3 斯坦福 UC27 50Hz连续 (kVA) 250.00 60Hz连续 (kVA) 312.00 电压范围 380-690 额定电压 低 极数 4 防护等级 IP23 材料绝缘等级 H 励磁系统 自励 绕组节距 2/3 相关案例研究 相关案例研究 探索斯坦福的更多成功案例 |AvK电源解决方案 斯坦福为沙特阿拉伯吉达私立医疗机构提供应急电源 ELCOS已经在国内外市场运营了超过... STAMFORD-AvK-Alternators-Case-Study-Standby-Visa-SpA-Hospital.pdf
斯坦福 HC5 50Hz连续 (kVA) 675.00 60Hz连续 (kVA) 843.00 电压范围 380-690 额定电压 低 极数 4 防护等级 IP23 材料绝缘等级 H 励磁系统 自励 绕组节距 2/3
斯坦福 UC27 50Hz连续 (kVA) 250.00 60Hz连续 (kVA) 312.00 电压范围 380-690 额定电压 低 极数 4 防护等级 IP23 材料绝缘等级 H 励磁系统 自励 绕组节距 2/3
