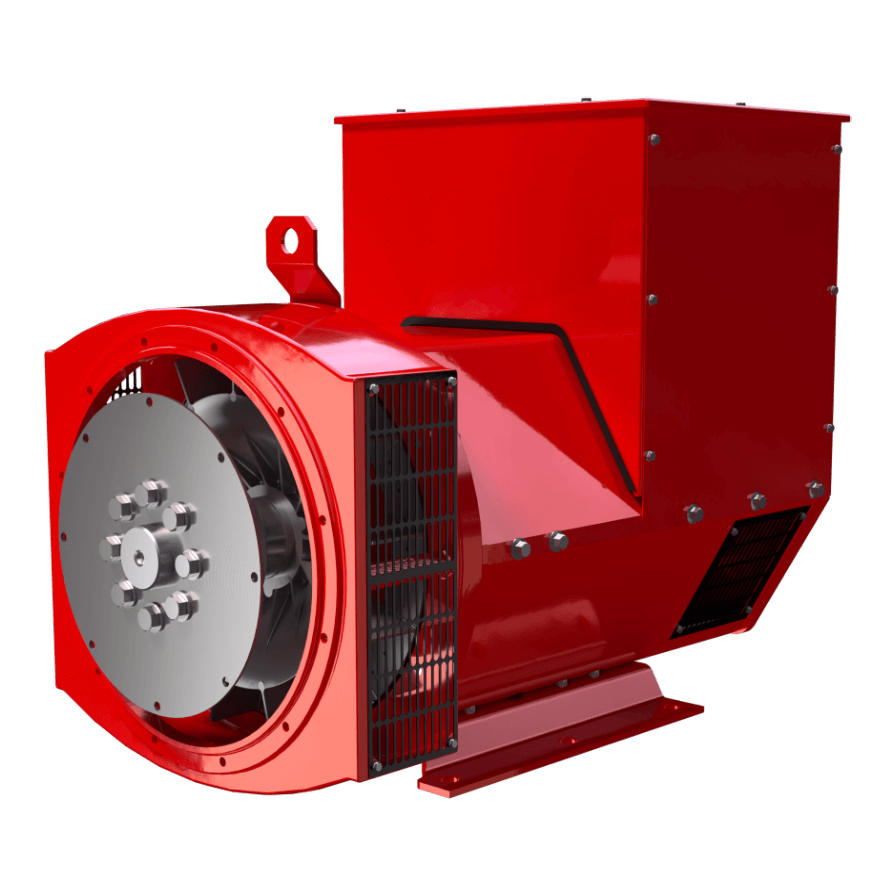

STAMFORD UC27

kVA Range
75-312
Frequency
50/60Hz

The STAMFORD® UC27 has a maximum continuous rating of 313kVA at 60Hz (250kVA at 50Hz) and a voltage output of 380-690 volts.

The STAMFORD® UC27 alternator’s proven and robust design allows it to be used for applications such as grid code, combined heat and power, marine, mobile construction, utility works and telecom industry. The UC27 product is offered only as a 4 pole alternator.

Specifications

Product Specifications

50Hz Continuous (kVA)
250.00
60Hz Continuous (kVA)
312.00
Voltage Designation
Low
Voltage Range
380-690
AVR
AS440
Poles
4
Winding Pitch
2/3
Options

Product Options

Ingress Protection
IP23
AVR Options
MX321 with PMG
MX341 with PMG
No AVR
AS440
Material Insulation Class
H
Excitation System
Self-Exciting
Options
1 phase re-connectable
3 phase sensing
Double Bearing
IP23 Air Filters
Thermistors
Anti-Condensation Heaters
PMG Excitation
