AvK DIG120

kVA Range
880-2600
Frequency
50/60Hz

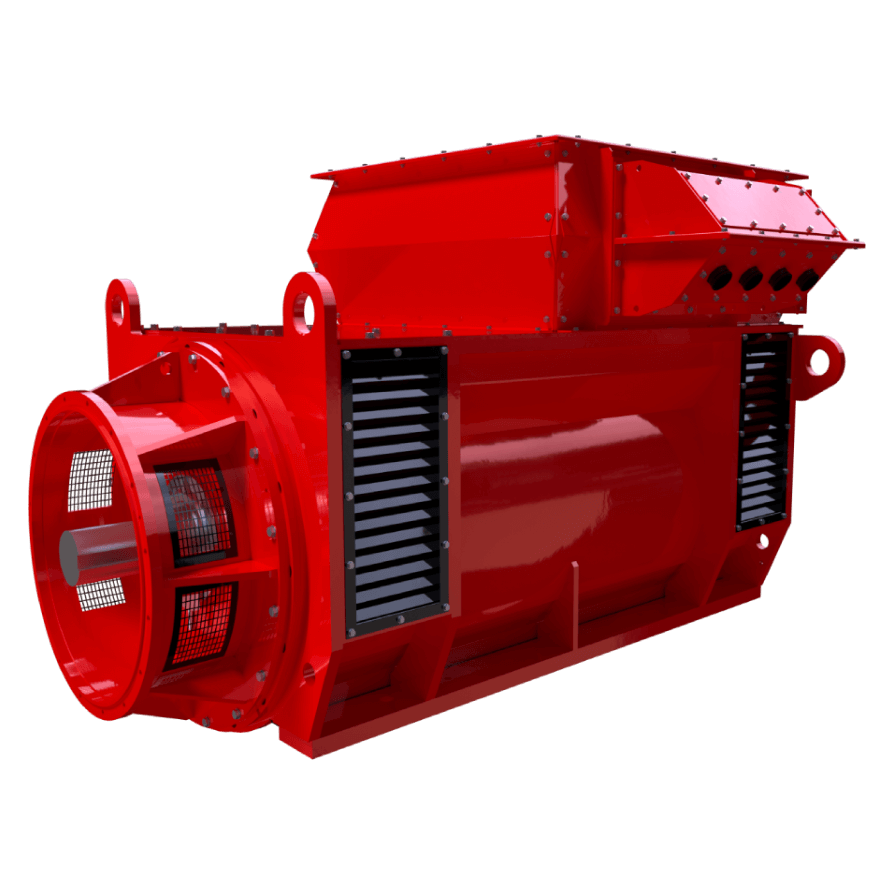

The AvK® DIG120 has a maximum continuous rating of 2,600 kVA at 60Hz (2,050 kVA at 50Hz) and a voltage output of 3,300-11,000 volts. As an AvK® alternator it is a robustly engineered product – specifically designed to meet the challenges of the most arduous applications and environments.

The DIG120 can deliver high efficiency and integrated design solutions to help you deliver the right package for your application whether this is for oil and gas, mining, marine, prime power, data centres or other projects.

Specifications

Product Specifications

50Hz Continuous (kVA)
2050
60Hz Continuous (kVA)
2600
Voltage Designation
Medium/High
Voltage Range
3300-11000
AVR
See Options
Poles
4
Winding Pitch
5/6
Ingress Protection
IP23
Material Insulation Class
F
Excitation System
Auxiliary Winding
Options

Product Options

AVR Options
DECS100
DECS150
DECS250
DM110
UNITROL 1010
UNITROL 1020
Options
CACA/CACW Cooling
IP23 Air Filters
IP44/54/55 Totally Enclosed
Anti-Condensation Heaters
Sleeve Bearings
