AvK A7

kVA Range
960-1625
Frequency
50/60Hz
Voltage Range
380-690
Poles
6

The AvK® A7 is part of the new AvK® A-Range, a 6-pole machine designed to operate with medium-speed engines (1000-1200 RPM). The A7 has a voltage output ranging from 380 to 690V and covers a power range up to 1625 kVA (1,300 kW) with a Class F marine rating.

The A7 range features enhanced thermal management thanks to patented CoreCooling™ technology. This results in a high-efficiency airflow system that allows AvK to deliver high-power density designs, minimising the machine's footprint while maximising its efficiency.

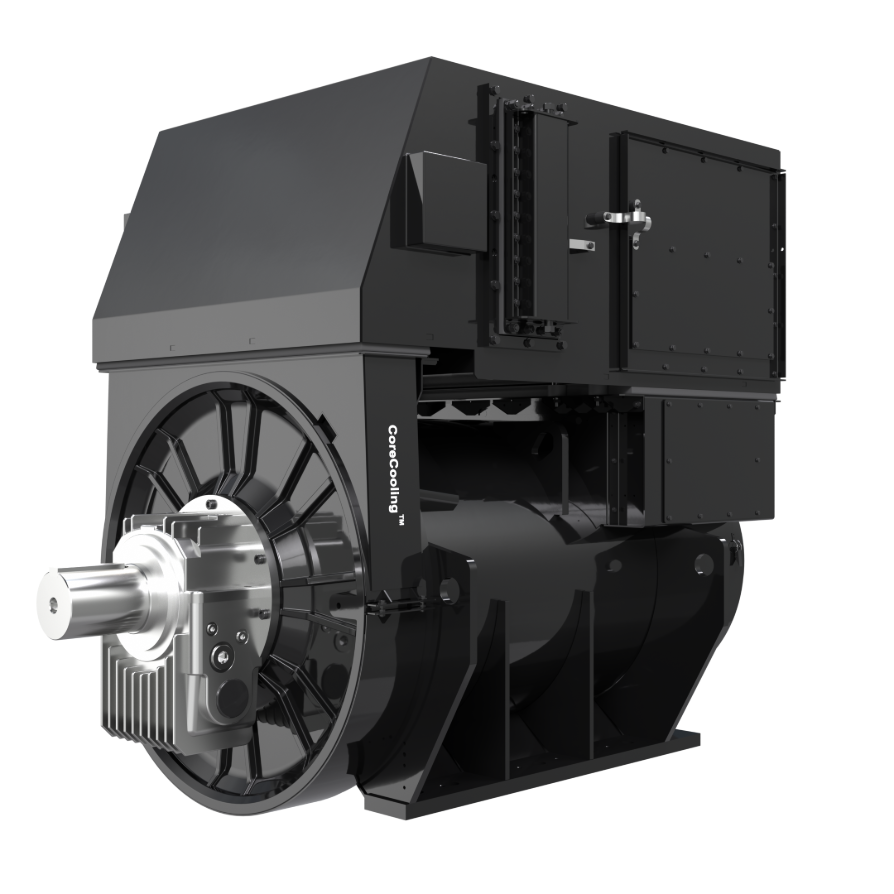

This low-voltage 6-pole alternator comes standard with a digital Automatic Voltage Regulator (AVR) and offers additional performance enhancements through optional features such as a water cooler and sleeve bearings.

All A-Range products are backed by a 3-year warranty and supported by our global service and dealer network.

Download AvK® A7 Product Brochure>

Specifications

Product Specifications

50Hz Continuous (kVA)
1625
60Hz Continuous (kVA)
1600
Voltage Designation
Low
Voltage Range
380-690
AVR
DM110
Poles
6
Winding Pitch
5/6
Winding Technology
Wire Wound
Ingress Protection
IP23
Material Insulation Class
H
Excitation System
PMG
Options

Product Options

AVR Options
DM110 with PMG
Options
3 phase sensing
Double Bearing Arrangement
SAE 00
Winding RTDs
Anti-Condensation Heaters
Sleeve Bearings
Water-cooled
